For small-scale production of wood sawdust pellets, screw-type extrusion pellet machines deliver a compact footprint, lower initial expenditure, and robust performance when feedstock is correctly prepared to the right particle size and moisture level; they perform especially well in household, farm, and small-plant contexts where portability, simple operation, and low running costs matter. Evidence from manufacturers and field units shows screw-extrusion models are a practical choice for turning wood residues into high-density fuel pellets when users follow recommended pre-processing, tooling selection, and maintenance routines.

Key attributes

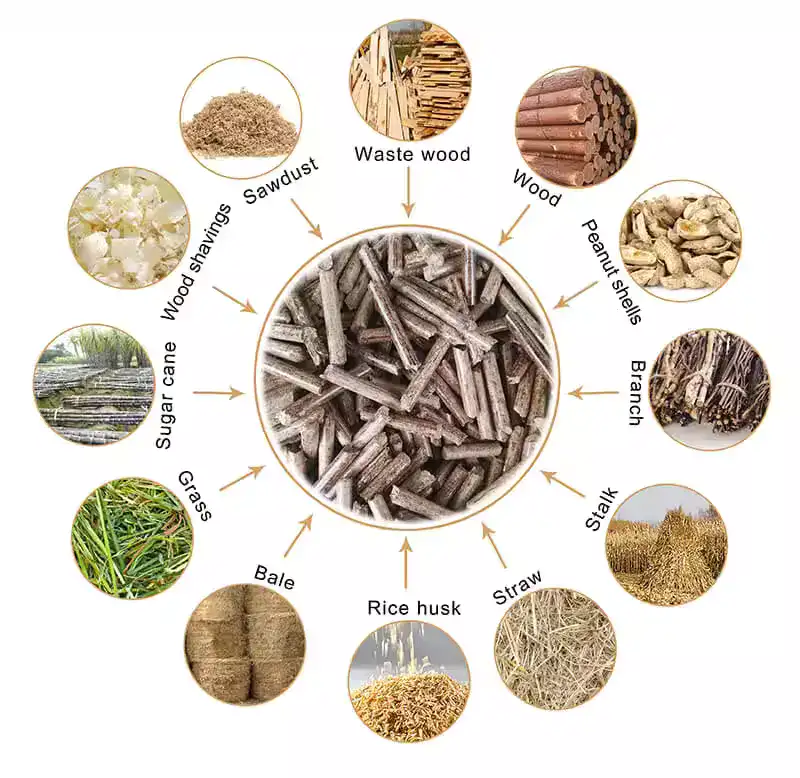

Raw Material	Grass, Rice Husk, Wood Sawdust, Biomass, Straw,…	key selling points	High Productivity
core components	Bearing, Motor, Pump, Gear, PLC, Other, Engine, Pressure…	voltage	380v/50HZ
warranty	1 Year	machinery test report	Provided
video outgoing-inspection	Provided	pellet diameter (mm)	6 – 12
output (kg/h)	550 – 4200 kg/h	place of origin	Henan, China
motor power (kw)	18.5kw	weight (kg)	550 KG
brand name	Lansonmachines	dimension(1*w*h)	1300*600*1500mm
Color	Customers’ Demand	Size	Customers’ Demand
Capacity	300-400 kg/h	Control system	PLC
Advantage	High Producing Efficiency	Operation	1-2 Workers
Feature	High Efficiency Low Cost	Motor brand	Chinese Famous Brand
Raw material	Iron and steel	After-sales Service Provided	Provided

1. Machine families and where the screw type fits

Small pellet machines used for wood sawdust fall into three broad families: flat-die mills, ring-die mills, and screw-extrusion mills. Each family targets different throughput, feedstock flexibility, capital profiles, and maintenance regimes.

• Flat-die machines are common in home and small workshop setups. They have a compact design and lower price point. Flat-die machines press material through holes in a stationary or rotating flat disk. They can handle a variety of biomass but often deliver lower continuous capacity compared with ring-die units.

• Ring-die machines appear in medium and industrial settings. They deliver higher capacity and continuous duty. Their die geometry and roller arrangement make them efficient for high-volume pellet plants.

• Screw-extrusion machines compress biomass using a helical screw housed in a forming barrel. Small screw pelletizers are particularly compact, often mobile, and can be driven by electric motor, gasoline engine, or diesel power pack. They can produce hollow or solid pellets depending on die design and operating parameters. Advantages include a simple structure, small footprint, and low purchase price, though certain parts may wear faster under abrasive feedstocks.

For sawdust-based pellets and small-scale production, screw-extrusion models represent a practical compromise: they require less floor area and fewer ancillary systems, and they can be integrated into a minimal process line that may only need a grinder and conveying equipment. Manufacturer listings show small units commonly rated from a handful of kilograms per hour up to a few hundred kilograms per hour, with multiple drive options offered for off-grid use.

2. How screw-type pellet machines operate (mechanics and thermodynamics)

2.1 Basic mechanical components

A typical small screw extrusion pellet machine contains these principal items:

• Feed hopper and metering throat

• Helical screw shaft driven by gearbox and motor

• Forming barrel or compressed chamber lined by a forming sleeve

• Pellet forming die or shaping plate at the outlet

• Cutter assembly for pellet length control

• Lubrication system and bearings

• Control panel or simple on/off and speed control

The continuous rotation of the screw transports feedstock forward while applying compressive and shear forces that raise local pressure and temperature, prompting particles to consolidate and bind. In many implementations the screw features variable pitch; a gradual reduction in pitch toward the die increases compressive loading and supports densification.

2.2 Material behaviour and binding

Wood sawdust binds through a combination of mechanical compaction, heat-induced softening of lignin, and frictional heating. Lignin softens between roughly 90 and 150 degrees Celsius, acting as a natural adhesive under pressure. Ensuring feedstock reaches the right moisture and temperature window is central to robust pellet formation. Pellets formed at too-low moisture often crumble, while excessive moisture makes compaction inefficient and imposes extra drying energy.

2.3 Screw versus compression rollers

Screw extruders concentrate force along the axis and use continuous volumetric transport, whereas roller-and-die systems use radial compression through rollers pressing material through die holes. The screw design offers simpler tooling and lower initial cost; trade-offs include wear on the screw and barrel when processing abrasive or contaminated feedstocks, and lower maximum continuous capacity compared with industrial ring-die presses.

3. Feedstock: sawdust characteristics, conditioning, and pre-processing

3.1 Key feedstock parameters

When preparing sawdust for pelletization, measure and control these variables:

• Particle size distribution: target a mean particle dimension below 3 millimetres; fines aid binding, large chips reduce density.

• Moisture content: recommended working range typically 10 to 18 percent by weight for many wood species; target near 12–15 percent for screw-extrusion units to balance lubrication and lignin activation.

• Contaminants: stones, metal fragments, plastics, and wet patches accelerate wear and reduce pellet quality. Magnetic separators and screening are standard preprocessing steps.

• Bulk density: low bulk densities can reduce feeding consistency; conditioning with hammer milling or flaking improves flow.

3.2 Pre-processing equipment

Small plants frequently include the following small machines:

• Hammer mill or wood crusher to reduce chip size to sawdust

• Drying unit (belt or rotary dryer) if raw material moisture exceeds the workable range

• Sieves and screens to separate oversized particles and contaminants

• Screw conveyor or small pneumatic feed to meter material into the pelletizer

A compact flow might combine a crusher, a screw conveyor, and the pellet mill. If the raw material originates from woodworking shops, screening and metal separation are high-priority steps to protect tooling.

3.3 Additives and binders

Often pure wood sawdust produces acceptable pellets because of natural lignin. In some cases adding small fractions (1–3 percent) of starch, molasses, or vegetable oil improves pellet durability, ignition behaviour, or calorific stability. Use of additives should match local fuel specification and emission regulations.

4. Technical specifications and selection tables for small units

Below are tables to help compare models and pick a candidate based on throughput, power, pellet diameter, and intended use. Numbers are representative; consult manufacturer datasheets for precise figures.

Table 1: Typical small screw-type pellet machine technical range

Source: manufacturer summaries and small unit catalogs.

Table 2: Comparison: screw-extrusion versus flat-die versus ring-die (small-scale lens)

This comparison highlights where screw units shine in simplicity and mobility, while ring-die offers the densest pellets for larger plants.

5. Process flow examples and mini-plant layouts

5.1 Minimalist home/farm process flow

Crusher or hammer mill → small hopper → screw-type pellet machine → cooling tray or bin → storage container. This layout suits users who accept intermittent production and batch handling. If moisture is high, include a simple drying step between crusher and pellet mill.

5.2 Small commercial unit (semi-continuous)

Dryer → hammer mill → vibrating screen and magnetic separator → screw conveyor → screw-extrusion pellet machine → pellet cooler (counterflow or ambient) → screener → bagging station. Adding a small cooling step improves pellet shelf life and reduces surface fines.

5.3 Example capacity scenarios

• Home hobby: single small pellet mill (2–6 kW motor), production 20–60 kg/h.

• Farm-level: small integrated line with crusher and dryer, output 100–300 kg/h.

• Micro-commercial: twin-machine line with basic automation, output 300–800 kg/h.

6. Performance metrics, pellet quality indicators, and testing methods

Evaluating pellets requires objective metrics:

• Bulk density (kg/m³): higher density improves transport efficiency and combustion duration.

• Durability or abrasion resistance: measured by tumbling tests; indicates mechanical integrity during handling.

• Moisture content (%): lower moisture improves storage stability.

• Calorific value (MJ/kg): depends on species and additives. Typical wood pellet calorific values range from 16 to 19 MJ/kg for many hardwoods.

• Ash content (%): residues after combustion; low ash preferred.

• Pellet porosity and fragmentation: relates to combustion rate and handling loss.

Simple on-site tests include bulk density measurement by filling a measured container, and a durability test using a small rotating drum or jar to simulate handling. For formal reporting, laboratory standards such as ENplus or ASTM pellet standards detail methods for durability and ash testing.

7. Installation, commissioning, and operator training checklist

7.1 Installation checklist for small screw pellet unit

• Solid, level foundation or floor supports; bolt-down points if recommended

• Proper electrical supply sizing and protection; check motor starter type

• V-belt, chain, or gearbox coupling alignment verification

• Hopper feed geometry and guards installed

• Exhaust, ventilation, and dust control measures in place

7.2 Commissioning steps

1. Dry-run the motor and gearbox with empty feed path to confirm rotation and bearings.

2. Feed small quantities of prepared sawdust; monitor torque, temperature, and smoke or smell.

3. Adjust screw speed and feed rate to achieve stable extrusion and desired pellet density.

4. Fine-tune cutter speed and position for pellet length uniformity.

5. Record baseline performance: throughput, motor current, pellet density, and noise levels.

7.3 Operator training essentials

Operators should learn safe feeding practices, routine lubrication points, how to change die and cutter parts, and emergency shut-off procedures. Emphasize policies for metal detection and removal to prevent catastrophic damage.

8. Routine maintenance, wear parts, and common failures with mitigation

8.1 Major wear parts

• Screw shaft and flights: contact with abrasive particles wears profile.

• Barrel or forming chamber liners: trade-off between hardness and toughness.

• Die plate: holes will open over time and change pellet diameter/tolerance.

• Cutters and shear blades: require periodic sharpening or replacement.

8.2 Preventive maintenance schedule

8.3 Common failures and corrective action

• Excessive vibration: check rotor balance and feed distribution; inspect bearings.

• Low pellet density: measure moisture and particle size; adjust screw pitch or feed rate.

• Overheating at die: reduce feed rate or install cooling on barrel; verify proper ventilation.

• Rapid die wear: inspect for contaminants; install magnetic separators and improve screening.

9. Economics: capital, operating cost, throughput scenarios, return on investment

9.1 Capital cost components for a small line

• Pellet machine: 1,000 to 20,000 USD depending on model and origin.

• Crusher/hammer mill: 500 to 6,000 USD.

• Dryer (if required): 2,000 to 25,000 USD based on technology and capacity.

• Conveyors, screening, and storage: 500 to 8,000 USD.

• Installation and commissioning: 500 to 5,000 USD.

Prices vary by supplier, custom options, country of origin, and shipping. Some small imported units list FOB price ranges that reflect this variability.

9.2 Operating cost factors

• Energy consumption: motor and auxiliary equipment electricity or fuel for engines/dryers.

• Labour: one operator for small lines; additional staff for continuous plants.

• Wear parts: die and cutter replacement intervals depend on feedstock cleanliness.

• Consumables: lubrication, sieves, bags, pallet supplies.

9.3 Simple payback scenario (example)

Assume small unit produces 200 kg/day (operational 250 days/year) = 50 tonnes/year. If pellet wholesale value is 150 USD per tonne and net margin after operating cost is 70 USD/tonne, annual net revenue = 3,500 USD. If capital cost is 8,000 USD, simple payback equals roughly over two years when accounting for variable costs and potential scale-up opportunities. Actual project feasibility must include local fuel prices, subsidies, and alternative uses for sawdust.

These numbers are illustrative. Buyers should prepare a detailed spreadsheet tailored to local raw material availability and market demand.

10. Environmental, regulatory, and safety considerations

10.1 Emissions and air quality

Pellet production can generate wood dust and particulate emissions. Enclosed processing lines and basic dust collectors reduce worker exposure. For pellet combustion, emissions depend on species, moisture, and ash content. Local regulations may require emission controls for dryers and grinders.

10.2 Fire and explosion risk

Fine wood dust forms an explosive atmosphere under certain concentrations. Key mitigation steps include grounding and bonding of equipment, spark detection for dried material, regular housekeeping to prevent accumulation, and avoiding open flames in production areas.

10.3 Waste and ash management

Ash from combustion and fines from screening can be recycled into animal bedding, horticultural amendments, or landfilled according to local regulation. Ensure compliance with waste handling laws.

10.4 Standards and certification

Certification programs such as ENplus for wood pellets set requirements for moisture, fines, and ash. Small producers aiming for broader markets should test products to meet buyer specifications and local standards where applicable.

11. Troubleshooting matrix (common problems and fixes)

Table 3: Troubleshooting quick-reference

These fixes are pragmatic and intended for rapid application by trained operators. Regular monitoring and logging reduces recurrence.

12. Practical tips for long-term reliable operation

1. Implement a daily logbook recording throughput, motor current, pellet quality, and any alarms. Trend data reveals slow-developing faults.

2. Use a small magnetic trap ahead of the pelletizer to remove studs, shavings, and nails from workshop waste.

3. Keep a small stock of spare die plates and cutters sized to your most common pellet diameter; changeover downtime is costly.

4. If mobility matters, choose engine-driven models with quick-coupling mounts and protective covers for outdoor storage.

5. Trial-run new raw materials on a small scale before committing to continuous production; species differences influence calorific value and ash.

13. Sample specifications checklist for procurement

When requesting quotations, include the following:

• Target throughput (kg/h and annual tonnes)

• Desired pellet diameter and length tolerance

• Primary raw material(s) and expected moisture range

• Power supply details (voltage, phase, on-site availability)

• Intended drive (electric, diesel, gasoline, PTO)

• Required accessories (crusher, dryer, conveyor, screening, cooler)

• Warranty and spare parts lead times

• Certifications and testing for pellet quality

Including these items speeds vendor comparison and reduces scope misunderstandings.

14. Annex: Example mini-plant bill of materials (sample for 200 kg/h)

Table 4: Example equipment list and budget range (rough estimates)

Prices vary widely by manufacturer and region. Small producers can often phase equipment purchases to manage cash flow.

15. Frequently asked questions (FAQs)

1. What pellet diameter should I choose for home heating?
Common diameters for domestic stoves are 6 or 8 mm. Smaller diameters ignite easily and feed smoothly through small augers; select based on stove manufacturer’s recommendation.

2. Can I run a screw-type pellet machine off a gasoline engine?
Yes. Many manufacturers offer gasoline or diesel drive variants for off-grid use. Ensure correct RPM coupling and fuel supply logistics are in place.

3. How often does the die need replacement?
Service interval depends on feedstock cleanliness and running hours; typical replacement for small operations might range from hundreds to thousands of operating hours. Monitor pellet diameter and change when tolerance shifts.

4. Do pellets made in small machines meet commercial standards?
Small producers can meet standards such as ENplus if they control moisture, particle size, ash, and durability. Testing in an accredited lab is recommended before commercial sales.

5. How much moisture is ideal for sawdust before pelletizing?
Aim near 12 to 15 percent for many wood species in screw-extrusion units. This window supports lignin softening and compaction without excessive drying costs.

6. Can I pelletize mixed agricultural waste with wood sawdust?
Yes. Many small pelletizers handle mixed biomass, though mixed materials change ash and combustion properties. Pre-blending and test runs are prudent.

7. What safety steps must a small operator take?
Implement dust control, grounding, spark detection for dryers, regular housekeeping, and emergency stops. Train staff on fire response and lockout-tagout procedures.

8. Why are my pellets dusty after production?
Possible causes include insufficient compression, high fines, or incorrect moisture. Regrind oversized particles, adjust feed rate, and consider tempering the material to reach the proper moisture window.

9. How energy-efficient are small screw pellet machines?
Efficiency varies. Small units generally consume 20 to 100 kWh per tonne including ancillary equipment, depending on crusher, dryer, and the specific machine. Optimizing moisture and particle size lowers energy use.

10. Are hollow-center pellets desirable?
Hollow-center pellets, produced by some screw-extrusion dies, offer faster ignition and are sometimes preferred where quick combustion is needed; hollow cores reduce mass per pellet and alter burning profile. Use depends on end-use and stove design.

16. Closing remarks

Small screw-type pellet machines present an accessible path for turning wood residues into a useful, storable fuel product. They excel when mobility, simple setup, and modest capital are priorities. Good outcomes require careful attention to feedstock preparation, machine selection, and preventive maintenance. By applying conservative safety practices and matching the right model to throughput goals, small operators can create a reliable pellet supply for heating or local sale.
